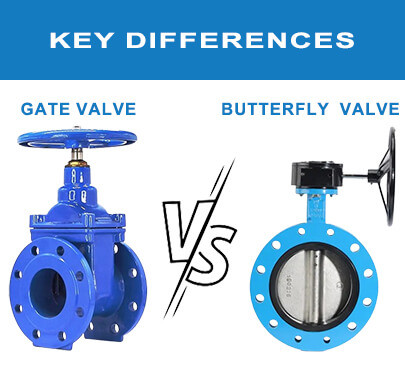

Selecting the right valve for your fluid control system is critical for achieving efficiency, reliability, and longevity. Butterfly valves and gate valves, though commonly used, differ significantly in structure, operation, and application. Let’s dive deeper into their distinctions to help you make an informed choice.

Structural Design: Compact vs. Robust

• Butterfly Valve features a rotating disc mounted on a shaft in the pipeline's center. Its quarter-turn mechanism opens or closes the valve by rotating the disc, which remains in the flow path. Butterfly valves are compact, lightweight, and designed for quick operation and space-constrained installations.

• Gate valves operate with a wedge-shaped or flat gate that lifts to allow fluid flow or lowers to block it. The gate retracts entirely when open, creating an unobstructed flow path. Gate valves are larger, heavier, and more complex, ideal for rugged environments demanding reliable shutoff.

Operational Dynamics: Speed vs. Precision

• Butterfly Valve:

  Operates swiftly with a 90-degree turn of the handle or actuator, making it ideal for systems needing quick response times.
Offers throttling capability but leaves the disc partially in the flow, causing minor turbulence and pressure drop.

• Gate Valve:

  Requires multiple full turns to open or close, offering precise control but slower operation.
Designed exclusively for on/off functions; partial opening can cause turbulence and damage internal components.

Flow Control and Efficiency

• Butterfly Valve:

  Best for moderate flow regulation in systems where slight pressure drops are acceptable.
The disc's presence in the flow path limits full bore capabilities but provides adequate control for most applications.

• Gate Valve:

  When fully open, provides a straight, unobstructed path with minimal pressure loss.
Suited for high-flow, high-pressure applications requiring maximum efficiency and flow capacity.

Size, Weight, and Installation

• Butterfly Valve:

  Lightweight and compact, reducing space and installation demands.
Often mounted between flanges with a wafer or lug-type connection.

• Gate Valve:

  Bulkier and heavier, requiring more support and space for installation.
Typically flanged or welded into the pipeline, offering robust connectivity.

Applications and Suitability

• Butterfly Valve:
  Ideal for low- to medium-pressure systems like HVAC, water distribution, and fire protection. Common in industries seeking cost-effective and space-efficient solutions.

• Gate Valve:
  Preferred for high-pressure, high-temperature operations such as oil and gas, power plants, and large-scale water treatment. Reliable for infrequent operation with stringent shutoff requirements.

Maintenance and Durability

• Butterfly Valve:

  Simple construction leads to fewer maintenance needs.
Elastomeric seals may wear faster in harsh conditions but are easy to replace.

• Gate Valve:

  More components mean higher maintenance requirements but greater durability in demanding environments.
Long service life if used appropriately in full-open or full-closed positions.

Cost Considerations

• Butterfly Valve:

  Economical and easy to manufacture, making it cost-effective for large systems.
Suitable for projects with budget constraints.

• Gate Valve:

  Higher initial cost due to complex construction and heavy materials.
A long-term investment for systems needing durability and minimal operational risks.
