The Flange Butterfly Valve stands out as a practical and efficient option for controlling fluid flow in pipelines. With its secure flange connections and durable design, this valve is a preferred choice in industries such as water treatment, oil and gas, HVAC, and chemical processing. This article explores the features, benefits, and applications of flange butterfly valves, offering insights into why they are a reliable choice for your industrial needs.

What is the Flange Butterfly Valve

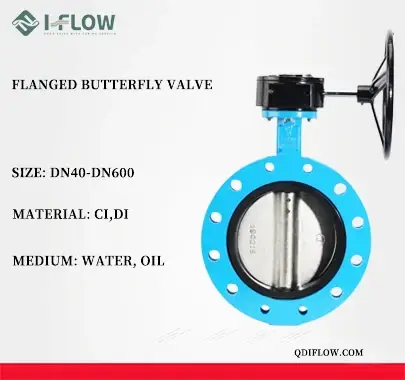

The Flange Butterfly Valve is a quarter-turn valve with a circular disc that rotates to control fluid flow. It is characterized by flanged ends, which enable easy bolting to pipe flanges, ensuring a secure and stable connection. These valves are designed for seamless operation in high-pressure and high-temperature environments, making them versatile for a wide range of industrial applications.

Key Features of Flange Butterfly Valves

1. Secure Flanged Connections

   • Provides a strong and leak-resistant joint between the valve and piping system.

2. Efficient Quarter-Turn Operation

   • Enables quick opening and closing, streamlining fluid control processes.

3. Durable Material Options

   • Available in materials like cast iron, ductile iron, carbon steel, and stainless steel to suit various media and conditions.

4. Flexible Sealing Options

   • Resilient seat or metal-to-metal seals ensure optimal performance in diverse applications.

5. Compact and Lightweight Design

   • Saves space and simplifies installation in systems with limited room.

Advantages of Flange Butterfly Valves

• Ease of Installation: Flanged ends ensure straightforward alignment and secure attachment to pipelines.
• Cost-Effective: Combines high performance with affordability, making it a budget-friendly solution.
• Low Pressure Drop: Streamlined disc design minimizes resistance, promoting efficient flow.
• Minimal Maintenance: Robust construction reduces wear and tear, lowering maintenance needs over time.
• Versatility: Suitable for handling liquids, gases, and even semi-solids in various industries.

How a Flange Butterfly Valve Works

The valve’s circular disc rotates around a central axis. When the disc is parallel to the pipeline, the valve is fully open, allowing unrestricted flow. Turning the disc 90 degrees blocks the passage, shutting off the flow. The flanged connection adds stability, ensuring the valve remains firmly in place even in high-pressure systems.

Comparison: Flange vs. Wafer and Lug Butterfly Valves

• Flange Butterfly Valve: Provides superior sealing and strength, ideal for high-pressure systems.
• Wafer Butterfly Valve: Economical and compact, best for systems requiring minimal sealing.
• Lug Butterfly Valve: Allows maintenance on one side of the pipeline without affecting the other.

Factors to Consider When Choosing a Flange Butterfly Valve

1. Material Compatibility: Match the valve material to the type of fluid and environmental conditions.
2. Pressure and Temperature Ratings: Ensure the valve meets system requirements to avoid premature failure.
3. Seal Type: Opt for resilient or metal-to-metal seals based on the application’s demands.
4. Pipeline Standards: Verify compatibility with ANSI, DIN, or other flange standards.

Related Valves for Your System

• High-Performance Butterfly Valves: Designed for extreme conditions, offering durability and zero-leakage performance.
• Triple Offset Butterfly Valves: Ideal for critical applications requiring precise control and tight sealing.
• Resilient Seated Butterfly Valves: A cost-effective option for non-corrosive and low-pressure systems.
