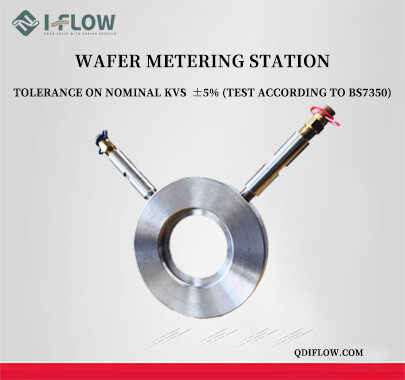

Key Features

1.Material: High-grade stainless steel for enhanced durability and corrosion resistance.

2.Flange Compatibility: Suitable for EN1092 PN16 flanges, ensuring ease of installation in standard piping systems.

3.Design Compliance: Designed according to BS7350, with a tolerance on nominal Kvs of ±5%, ensuring reliable and precise performance under testing.

4.Flow Measurement: The flow (Q in l/s) is linked to the differential pressure (Δp in kPa) measured at test points. The minimum flow measurable for each diameter can be calculated using the minimum Δp measurable by the used manometer.

Performance Considerations

1.To ensure optimal performance, the wafer metering station must be installed in a pipeline of the same nominal size. It should be preceded and followed by straight pipe lengths, as indicated in BS7350 installation guidelines. This configuration minimizes turbulence and ensures the most accurate flow measurements.

2.Additionally, for enhanced system balance and control, the flow meter can be paired with a balancing valve of the same DN (such as the VIR Fig.9565P, which includes a flow meter Fig.9450 and balancing valve Fig.9555P).

Advantages

1.Accurate Flow Measurement: The design is optimized for precision, with a nominal Kvs tolerance of ±5% as per BS7350. This ensures that the flow measurements remain within acceptable limits, providing operators with reliable data.

2.Wide Application Range: With a working temperature range from -10°C to +130°C, the meter can handle a variety of water applications, even those requiring antifreezing or anti-boiling fluids.

3.Durability: Constructed from stainless steel, the metering station is resistant to corrosion, making it suitable for long-term use in harsh industrial environments.

Customizable Installation: The flow meter can be paired with balancing valves to provide a complete flow management solution, ensuring precise control and measurement in complex systems.
