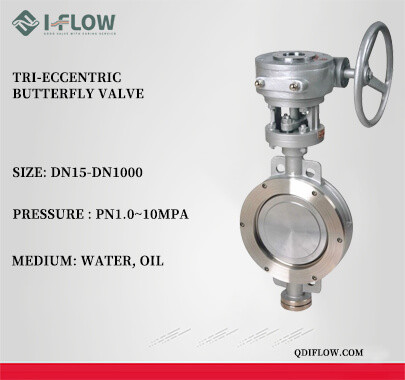

What is the TRI-Eccentric Butterfly Valve

The TRI-Eccentric Butterfly Valve, also known as a triple offset butterfly valve, is a high-performance valve engineered for critical applications that demand tight shutoff and durability. This innovative valve features a triple offset design, minimizing wear on the valve seat and enhancing its longevity. Its superior sealing capability makes it ideal for industries such as oil & gas, power generation, chemical processing, and marine systems, where zero leakage, extreme temperature resistance, and high-pressure handling are essential.

How TRI-Eccentric Butterfly Valves Work

The "triple offset" refers to the unique geometric configuration of the valve's disc and seat, which significantly reduces friction during operation. The three offsets are:

First Offset: The valve disc's shaft is placed slightly behind the centerline of the valve seat. This positioning reduces friction and wear during opening and closing.

Second Offset: The disc is offset from the valve body’s centerline, enabling the disc to rotate into the seat without dragging against it, reducing wear.

Third Offset: The valve features an angular offset, allowing for a cam-like motion that ensures metal-to-metal sealing without any friction, creating a reliable and tight shutoff under extreme conditions.

Key Features of TRI-Eccentric Butterfly Valves

Zero Leakage: Thanks to its precise metal-to-metal seal, the valve ensures zero leakage, even under high temperature and pressure conditions, making it ideal for critical environments.

High Temperature and Pressure Resistance: These valves are built to handle extreme temperatures and high pressures, suitable for demanding applications such as steam, gas, and hydrocarbon services.

Extended Service Life: The triple offset design minimizes contact between the disc and seat, drastically reducing wear and increasing the valve's lifespan.

Bi-Directional Flow Control: These valves can provide effective shutoff in both flow directions, offering greater versatility for various system configurations.

Low Torque Operation: Despite its tight sealing, the valve operates with low torque, reducing energy consumption and facilitating easy automation for high-performance systems.

Advantages of TRI-Eccentric Butterfly Valves

Reliable Sealing: The triple offset design delivers a dependable, tight shutoff, even in extreme temperature and pressure conditions, ensuring no leakage.

Durable Construction: Made from materials like stainless steel, carbon steel, and high-performance alloys, TRI-eccentric valves are corrosion-resistant and designed to withstand harsh environments, contributing to a longer service life.

Cost-Effective Solution: With minimal wear and low maintenance requirements, these valves offer long-term cost savings by reducing the frequency of replacements and repairs.

Versatility: TRI-eccentric butterfly valves are suitable for a wide range of fluids, including gases, steam, and hydrocarbons. They are highly versatile and applicable in industries like oil & gas, chemical processing, power generation, and more.
