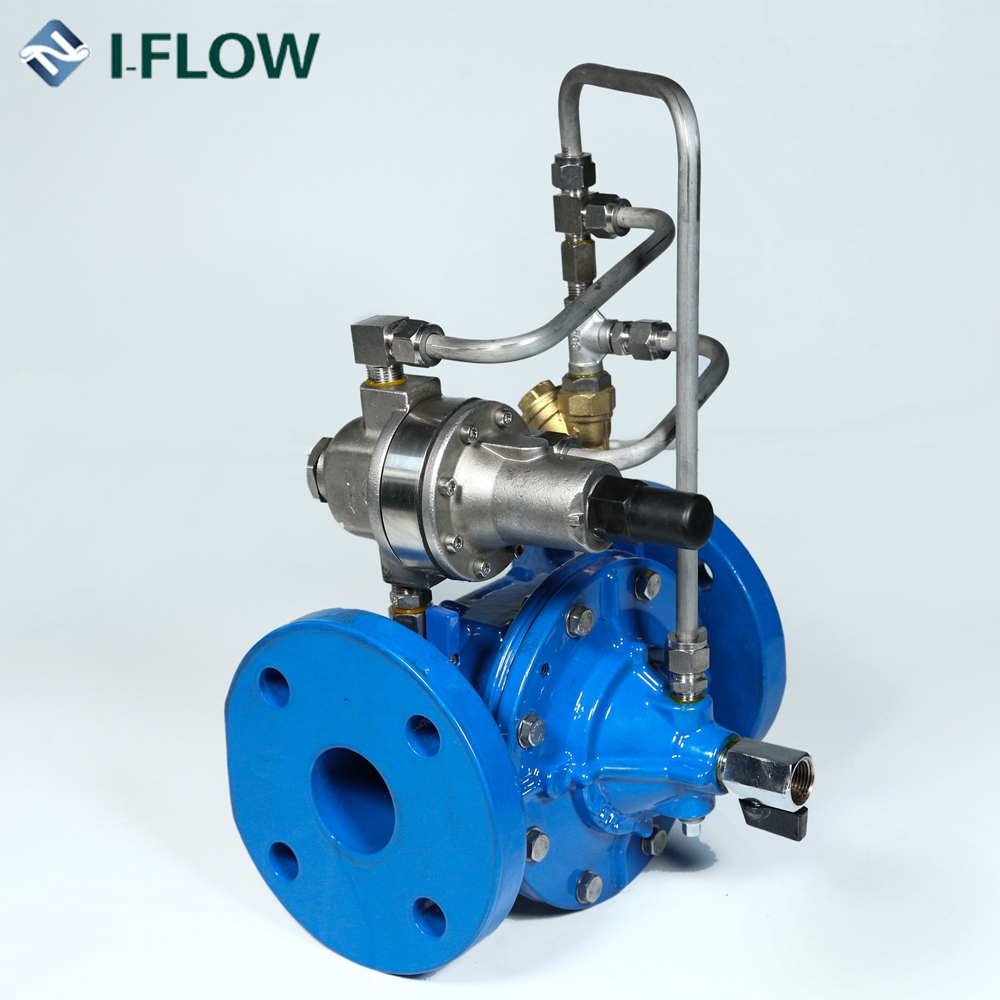

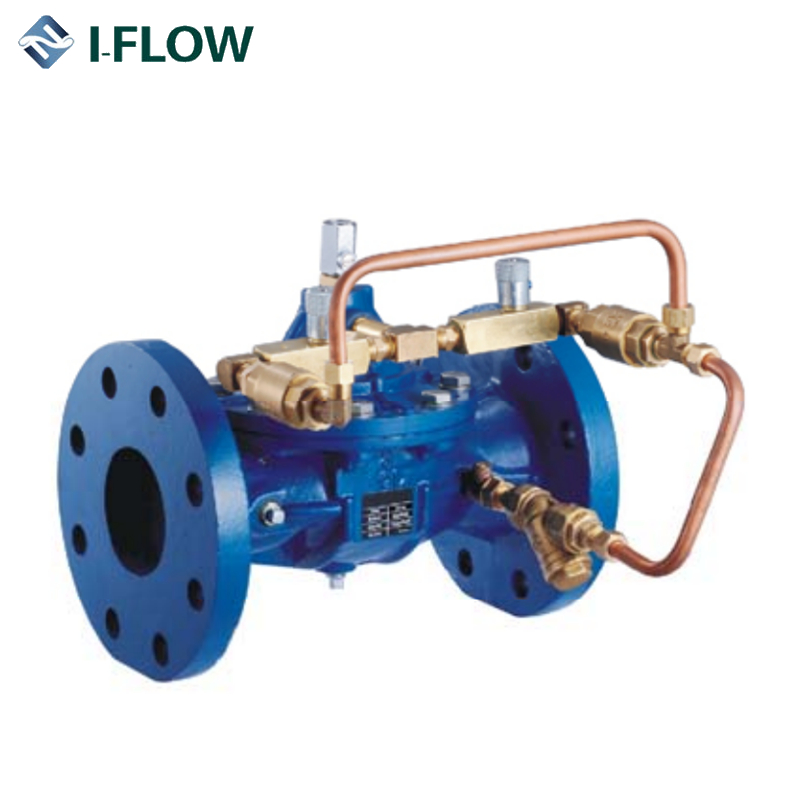

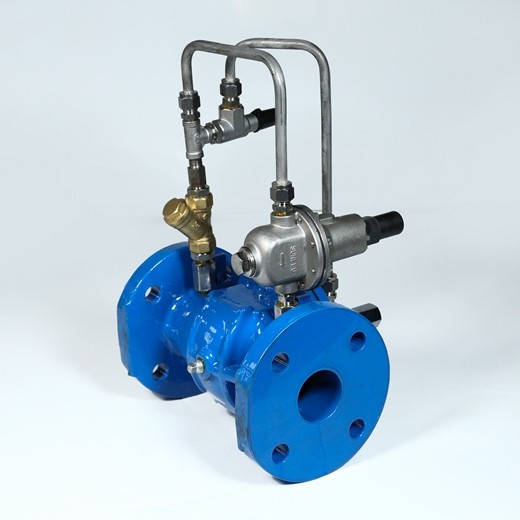

Pressure Reducing Control Valve

1. The maximum temperature: 90 C.
2. Flange type: if not specified pressure is 16bar.
3. Screw type: 1" 1/2 F/F.

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

Valve fully opened:
1, Too large a differential pressure and a low downstream pressure may result in damage to the valve by cavitation.
2, To avoid it, refer to the differential pressure in two or more stages by installing and connecting directly two or more control valves in tandem.

Specification

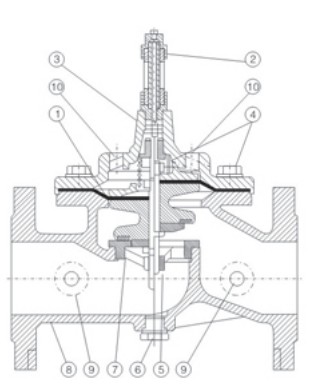

NO.	Part Name	Material
1	Membrane	Reinforced NBR
2	Drain cock on top cap	Brass
3	(PN16) High pressure top cap	Cast iron
4	Nuts, bolts screws	Stainless steel
5	Replaceable streamlined seat	Bronze
6	Body drain plug	Brass
7	Reversible seat seal	NBR
8	(PN16) High pressure body	Cast iron

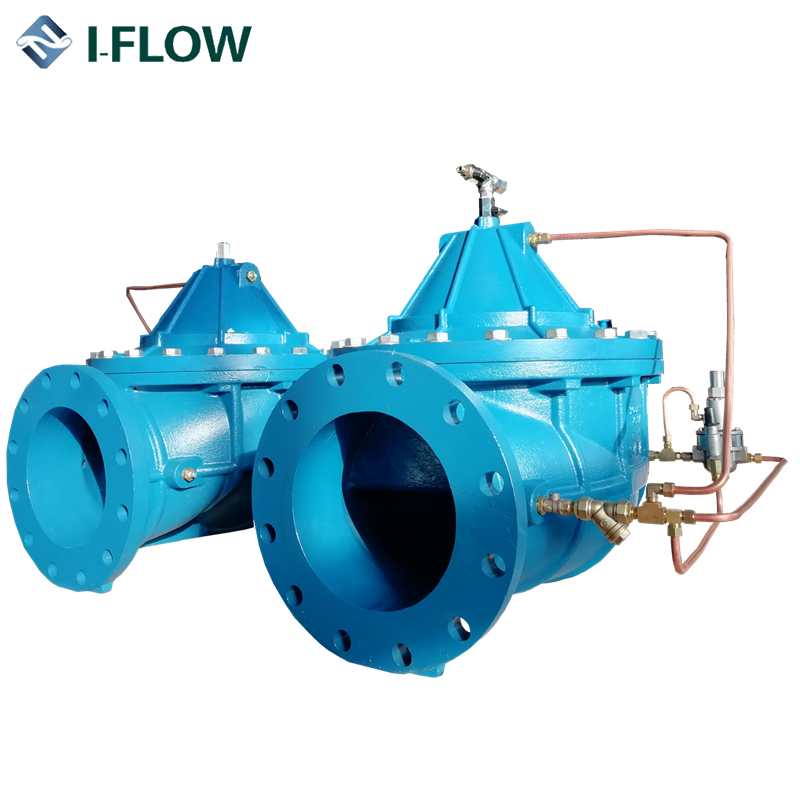

Main Valve

DN	A mm	B mm	C mm	D mm	E mm	F mm	H mm	Z mm
40	237	240	160	169.90	167	16	42	254
50	243	240	160	169.9	167	16	42	254
65	276	255	160	169.90	192	18	42	254
80	276	255	160	169.9	200	18	42	254
100	306	315	205	205	233	24	42	254
125	416	370	240	279.5	250	25	42	254
150	416	380	240	279.5	283	26	42	254
200	520	490	330	363	345	28	42	254
250	755	69o	490	479.5	410	33	42	254
300	764	720	490	693	480	34	42	254

The same main valve structure is used for all types of control valve.

We suggest extending the exhaust tube to places where the relief water will not pouufe the surrounding or damage other devices, especially electrical apparatus.

Pressure Reducing Valve (SCT101)

Part No.	Name	Material
A	Main ball	Cast iron. Ductile iron
B	Ball	Brass
B1	Ball	Brass
C	Exhaust valve	Brass
D	Ball	Brass
G	Filter	Brass
H	Reducing orifice	Stainless steel
I	Throttle valve	Brass, stainless steel
M	Priority valve	Stainless steel
	Vertical installation spring assembly (optional)	Stainless steel
