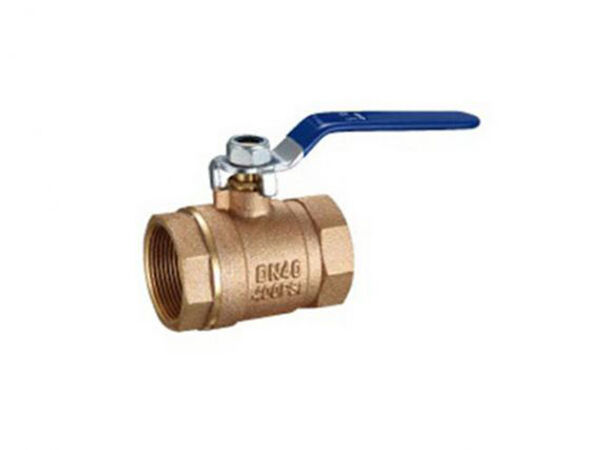

Bronze Ball Valve

Material：stainless steel ,brass , bronze
Size：1/4’’-4’’
Thread：NPT, BSP, DIN2999, BSPT
Working pressure1000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

WORKING PRESSURE AND TEMPERATURE:

Working Pressure: PN20

Working Temperature: -10℃~170℃

WORKING MEDIUM:

Water, Oil and Steam

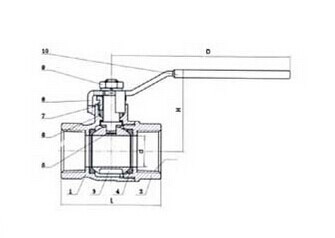

Specification

NO.	PART	MATERIAL
1	Body	BS1400 LG2
2	Seat Retainer	BS1400 LG2
3	Ball	DZR, Chrome Plated
4	Seat	PTFE
5	Stem	DZR Brass CW602N
6	Packing	PTFE
7	Gland Nut	DZR
8	Lever	Mild Steel
9	Lever Nut	Stainless Steel
10	Lever Cover	PVC

Dimensions data(mm)

Size	1/2"/15	3/4"/20	1"/25	1-1/4"/32	1-1/2"/40	2"/50
d	14	19	24	31	38	49
L	53	61	71	85	92	114
H	44	51	55	65	70	83
W	95	110	110	140	140	160
