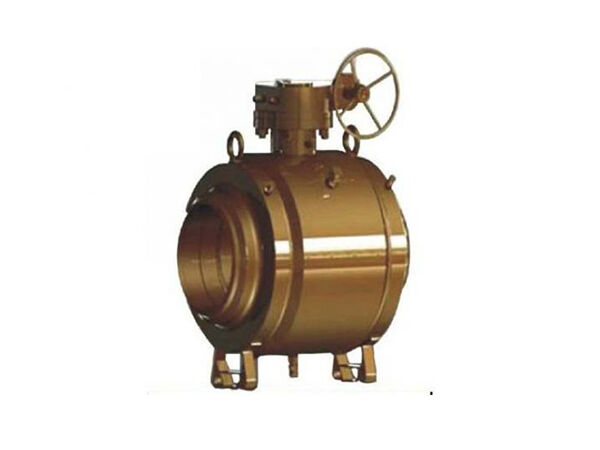

Full Welded Ball Valve
1.Material SS316,316L,304 ,brass,bronze,WCB
2.Pressure class 150-class900
3.Connection ferrule
4.Power Manual
5.Seated Metal
6.Media Gas,water,etc
7.Type: 2-way 3-way 1-way ,full welded,float,trunnion
Tel: +86-532-66952179/66952180
E-mail: info@qdiflow.com
PRODUCTS
CONTACT US
Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China
Description
Specification
| Nominal diameter(in) | NPS6-40 | ||||||
| Nominal pressure(Mpa) | Class150-Class900 | ||||||
| NO | PART NAME | CARBON STEEL | STAINESS STELL | ||||
| Material of parts | 1 | Body | ASTMA105 | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L |
| 2 | Anti-fire packing | Graphite | |||||
| 3 | Seat | PTFE/NYLON/PEEK/PPL | |||||
| 4 | Seat ring | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 5 | O-ring | VITON | |||||
| 6 | Spring | 17-7PH | |||||
| 7 | Bonnet | ASTMA105 | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 8 | Sealant injection valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 9 | Check valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 10 | Ball | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 11 | Thrust gasket | PTFE | |||||
| 12 | Sliding bearing | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | Metal+PTFE | |
| 13 | Pin | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | ANSI 1035 | |
| 14 | Bearing holder | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 15 | Seal gland | ASTM A105.ENP | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 16 | Thrust bearing | PTFE | |||||
| 17 | Stem | ASTM A 182 F6a | ASTM A182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 18 | Flat key | ANSI 1045 | ANSI 1045 | ANSI 1045 | ANSI 1045 | ANSI 1045 | |
| 19 | Thrust bearing | PTFE | |||||
| 20 | Anti-fire gasket | SST+Graphite | |||||
| 21 | Connection plate | ASTMA105 | ASTMA182 304 | ASTMA182 316 | ASTMA182 304L | ASTM A182 316L | |
| 22 | Socket head cap screw | A193 B7M | A320 B8 | A320 B8M | A320 B8 | A320 B8M | |
| 23 | Packing | Graphite | |||||
| 24 | Packing gland | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | ASTM A 182 F6a | |
| 25 | Anti-static valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 26 | Air release valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| 27 | Drainage valve | Combined parts | Combined parts | Combined parts | Combined parts | Combined parts | |
| Applicalbe service conditions | Applicable media | Water steam,oil,gas,liquefed,gas,natural gas,etc | Nitric acidAcetic acid | Acetic acid | Strong Oxidizer | Urea | |
| Applicalbe temperature | 120℃(PTFE).≤80℃(NYLON),≤250℃(PEEK), ≤250℃(PPL) | ||||||
| Design and manufacturing | API 608,API6D | ||||||
| Face-to face dimensions | ASME B16.10, API 6D,JIS B2002 | ||||||
| Type of connection | Flange | ASME B16.5/ASME B16.47 | Bult welding | ASME B16.25 | |||
| Pressure test | API598. API6D | ||||||
| Transmission mode | Manual, worm and worm gear transmission, pneumatic, electric | ||||||

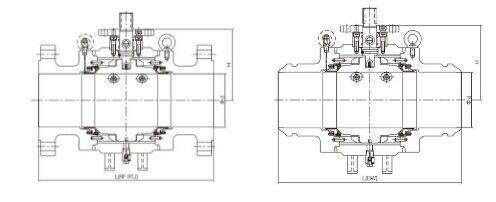

Dimensions data(mm)
| Pressure rating | Nominal Diameter | d | Flange | Bult welding | H | Weight(kg) | |||
| Class | NPS | DN | L(RF) | L(RTJ) | L(BW) | WE | RF | ||
| 150 | 6" | 150 | 150 | 394 | 406 | 457 | 225 | 185 | 220 |
| 8" | 200 | 201 | 457 | 470 | 521 | 258 | 250 | 290 | |
| 10" | 250 | 252 | 533 | 546 | 559 | 310 | 400 | 430 | |
| 12" | 300 | 303 | 610 | 622 | 635 | 350 | 550 | 620 | |
| 14" | 350 | 334 | 686 | 699 | 762 | 382 | 820 | 900 | |
| 16" | 400 | 385 | 762 | 775 | 838 | 421 | 1100 | 1220 | |
| 18" | 450 | 436 | 864 | 876 | 914 | 468 | 1400 | 1550 | |
| 20" | 500 | 487 | 914 | 927 | 991 | 510 | 1750 | 1950 | |
| 24" | 600 | 589 | 1067 | 1080 | 1143 | 592 | 2800 | 3050 | |
| 26" | 650 | 633 | 1143 | ／ | 1245 | 635 | 2900 | 3250 | |
| 28" | 700 | 684 | 1245 | ／ | 1346 | 675 | 3400 | 3700 | |
| 30" | 750 | 735 | 1295 | ／ | 1387 | 723 | 4800 | 5300 | |
| 32" | 800 | 779 | 1372 | ／ | 1524 | 751 | 5500 | 6000 | |
| 36" | 900 | 874 | 1524 | ／ | 1727 | 858 | 7550 | 8370 | |
| 40" | 1000 | 976 | 1753 | ／ | 1956 | 930 | 10290 | 11320 | |
| 300 | 6" | 150 | 150 | 403 | 419 | 457 | 225 | 185 | 230 |
| 8" | 200 | 201 | 502 | 518 | 521 | 258 | 250 | 300 | |
| 10" | 250 | 252 | 568 | 584 | 559 | 310 | 400 | 460 | |
| 12" | 300 | 303 | 648 | 664 | 635 | 350 | 550 | 670 | |
| 14" | 350 | 334 | 762 | 778 | 762 | 382 | 820 | 1000 | |
| 16" | 400 | 385 | 838 | 854 | 838 | 421 | 1100 | 1320 | |
| 18" | 450 | 436 | 914 | 930 | 914 | 468 | 1400 | 1650 | |
| 20" | 500 | 487 | 991 | 1010 | 991 | 510 | 1750 | 2000 | |
| 24" | 600 | 589 | 1143 | 1165 | 1143 | 592 | 2800 | 2550 | |
| 26" | 650 | 633 | 1245 | ／ | 1245 | 635 | 2900 | 3300 | |
| 28" | 700 | 684 | 1346 | ／ | 1346 | 675 | 3400 | 3750 | |
| 30" | 750 | 735 | 1397 | ／ | 1397 | 723 | 4800 | 5500 | |
| 32" | 800 | 779 | 1524 | ／ | 1524 | 751 | 5500 | 6500 | |
| 36" | 900 | 874 | 1727 | ／ | 1727 | 858 | 7550 | 8800 | |
| 40" | 1000 | 976 | 1956 | ／ | 1956 | 930 | 10290 | 11900 | |
| Pressure rating | Nominal Diameter | d | Flange | Bult welding | General | Weight(kg) | |||
| Class | NPS | DN | L(RF) | L(RTJ) | L(BW) | H | WE | RF | |
| 600 | 6" | 150 | 150 | 559 | 562 | 559 | 255 | 250 | 330 |
| 8" | 200 | 201 | 660 | 664 | 660 | 290 | 340 | 450 | |
| 10" | 250 | 252 | 787 | 791 | 787 | 320 | 570 | 710 | |
| 12" | 300 | 303 | 838 | 841 | 838 | 380 | 580 | 1000 | |
| 14" | 350 | 334 | 889 | 892 | 889 | 410 | 1100 | 1370 | |
| 16" | 400 | 385 | 991 | 994 | 991 | 435 | 1350 | 1650 | |
| 18" | 450 | 436 | 1092 | 1095 | 1092 | 495 | 2100 | 2400 | |
| 20" | 500 | 487 | 1194 | 1200 | 1194 | 535 | 2600 | 3000 | |
| 24" | 600 | 589 | 1397 | 1407 | 1397 | 642 | 3700 | 4300 | |
| 26" | 650 | 633 | 1448 | ／ | 1448 | 665 | 3900 | 4500 | |
| 28" | 700 | 684 | 1549 | ／ | 1549 | 704 | 4200 | 4900 | |
| 30" | 750 | 735 | 1651 | ／ | 1651 | 745 | 6000 | 6900 | |
| 32" | 800 | 779 | 1778 | ／ | 1778 | 785 | 6800 | 8000 | |
| 36" | 900 | 874 | 2083 | ／ | 2083 | 875 | 9570 | 10850 | |
| 900 | 6" | 150 | 150 | 610 | 613 | 610 | 255 | 330 | 430 |
| 8" | 200 | 201 | 737 | 740 | 737 | 290 | 400 | 520 | |
| 10" | 250 | 252 | 838 | 841 | 838 | 320 | 640 | 820 | |
| 12" | 300 | 303 | 965 | 968 | 965 | 380 | 900 | 1050 | |
| 14" | 350 | 322 | 1029 | 1038 | 1029 | 410 | 1020 | 1400 | |
| 16" | 400 | 373 | 1130 | 1140 | 1130 | 435 | 1350 | 2050 | |
| 18" | 450 | 423 | 1219 | 1232 | 1219 | 495 | 2600 | 3400 | |
| 20" | 500 | 471 | 1321 | 1334 | 1321 | 535 | 3700 | 4200 | |
| 24" | 600 | 570 | 1549 | 1568 | 1549 | 642 | 4400 | 5400 | |
| 1500 | 6" | 150 | 144 | 705 | 711 | 705 | 255 | 375 | 565 |
| 8" | 200 | 192 | 832 | 841 | 832 | 290 | 415 | 505 | |
| 10" | 250 | 239 | 991 | 1000 | 991 | 320 | 525 | 640 | |
| 12" | 300 | 287 | 1130 | 1146 | 1130 | 380 | 780 | 950 | |
| 14" | 350 | 315 | 1257 | 1275 | 1257 | 410 | 1145 | 1380 | |
