Description
Suction Diffuser
Size:2"-24" /DN50-DN600
Working Pressure: Class125/ PN16/ PN 25
Flanged Standard:ANSI B16.1,ANSI B16.42,EN1092-2
Working Temperature:-20℃- 120℃
Specification

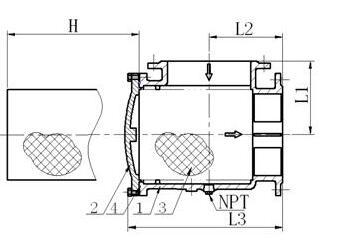

Dimensions data(mm)
NPS | 2 x1 1/2 | 2 x 2 | 2 1/2 x2 | 2 1/2 x2 1/2 | 3 x 2 | 3 x 2 1/2 | 3 x 3 | 4 x3 |
(inletxoutlet) | ||||||||
DN | 50x40 | 50x50 | 65x50 | 65x65 | 80x50 | 80x65 | 80x80 | 100x80 |
(inletxoutlet) | ||||||||
L1 | 114.3 | 114.3 | 127 | 127 | 139.7 | 139.7 | 139.7 | 165 |
L2 | 114.3 | 114.3 | 127 | 127 | 114.3 | 139.7 | 139.7 | 165 |
L3 | 253 | 253 | 270 | 270 | 252 | 284 | 284 | 334 |
H | 125 | 125 | 138 | 138 | 125 | 143 | 143 | 172 |
NPT | 3/4“NPT | 1“NPT | ||||||
Kv | 18 | 64.5 | 64.5 | 109 | 64.5 | 109 | 143 | 143 |
Cv | 21 | 75.2 | 75.2 | 127.2 | 75.2 | 127.2 | 166.9 | 166.9 |
NPS | 4x4 | 5 x 4 | 5 x 5 | 6 x 4 | 6 x 5 | 6 x 6 | 8 x 5 | 8x 6 |
(inletxoutlet) | ||||||||
DN | 100x100 | 125x100 | 125x125 | 150x100 | 150x125 | 150x150 | 200x125 | 200x150 |
(inletxoutlet) | ||||||||
L1 | 165 | 190.5 | 190.5 | 203 | 203 | 203 | 192 | 228.6 |
L2 | 165 | 190.5 | 190.5 | 165 | 203 | 203 | 228.6 | 203.2 |
L3 | 328 | 394 | 394 | 345 | 423 | 423 | 487 | 455 |
H | 166 | 223 | 223 | 172 | 250 | 250 | 312 | 250 |
NPT | 1“NPT | |||||||
Kv | 252 | 252 | 498 | 252 | 498 | 585 | 498 | 585 |
Cv | 294.1 | 294.1 | 581.2 | 294.1 | 581.2 | 682.7 | 581.2 | 682.7 |
NPS | 8 x 8 | 10 x8 | 10 x 10 | 12 x8 | 12 x10 | 12 x12 | 14 x10 | 14 x12 |
(inletxoutlet) | ||||||||
DN | 200x200 | 250x200 | 250x250 | 300x200 | 300x250 | 300x300 | 350x250 | 350x300 |
(inletxoutlet) | ||||||||
L1 | 228.6 | 279.4 | 279.4 | 280 | 304.8 | 304.8 | 318 | 318 |
L2 | 228.6 | 28.6 | 279.4 | 280 | 279.4 | 304.8 | 328 | 328 |
L3 | 542 | 539 | 678 | 551 | 678 | 678 | 678 | 678 |
H | 355 | 355 | 458 | 315 | 458 | 454 | 460 | 460 |
NPT | 1 1/4“NPT | |||||||
Kv | 910 | 910 | 1480 | 910 | 1480 | 2150 | 1480 | 2150 |
Cv | 1062 | 1062 | 1727.2 | 1062 | 1727.2 | 2509.1 | 1727.2 | 2509.1 |
NPS | 14 x14 | 16 x12 | 16 x14 | 16 x16 | 18x14 | 18 x16 | 18x18 | 20x16 |
(inletxoutlet) | ||||||||
DN | 350x350 | 400x300 | 400x350 | 400x400 | 450x350 | 450x400 | 450x450 | 500x400 |
(inletxoutlet) | ||||||||
L1 | 318 | 334 | 334 | 334 | 370 | 370 | 370 | 406 |
L2 | 328 | 364 | 364 | 364 | 389 | 389 | 389 | 428 |
L3 | 678 | 745 | 745 | 745 | 785 | 785 | 785 | 849 |
H | 460 | 522 | 522 | 522 | 562 | 562 | 562 | 612 |
NPT | 1 1/4“NPT | |||||||
Kv | 3100 | 2150 | 3100 | 4050 | 3100 | 4050 | 4900 | 4050 |
Cv | 3617.7 | 2509.1 | 3617.7 | 4726.4 | 3617.7 | 4726.4 | 5718.3 | 4726.4 |
NPS | 20x18 | 20x20 | 24x18 | 24 x20 | 24 x24 | |||
(inletxoutlet) | ||||||||
DN | 500x450 | 500x500 | 600x450 | 600x500 | 600x600 | |||
(inletxoutlet) | ||||||||
L1 | 406 | 405 | 470 | 470 | 470 | |||
L2 | 428 | 428 | 480 | 480 | 480 | |||
L3 | 849 | 849 | 974 | 974 | 974 | |||
H | 612 | 612 | 720 | 720 | 720 | |||
NPT | 1 1/4“NPT | 1 1/2“NPT | ||||||
Kv | 4900 | 5950 | 4900 | 5950 | ||||
Cv | 5718.3 | 6954.2 | 5718.3 | 6954.2 |
