JIS F 7369 Cast iron 16K gate valve



Position: HOME > PRODUCTS > Marine > JIS Marine Valve > JIS F 7369 Cast iron 16K gate valve

JIS F 7369 Cast iron 16K gate valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7369-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	3.3
	SEAT	2.42

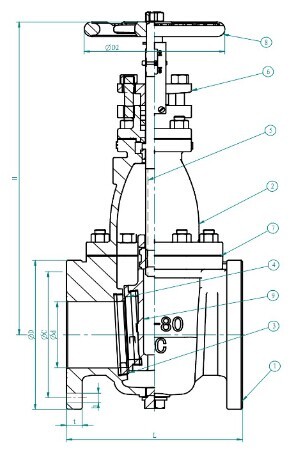

Specification

9	DISC	FC200
8	HANDWHEEL	FC200
7	GASKET	NON-ASBESTES
6	PACKING GLAND	BC6
5	STEM	CA771BD	SUS403
4	VALVE SEAT	BC6	SCS2
3	VALVE SEAT	BC6	SCS2
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	CLASS B	CLASS S
NO.	NAME OF PART	MATERIAL
CAST IRON 16K GATE VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	8	19	20	300	140
65	65	220	175	140	8	19	22	350	160
80	80	230	200	160	8	23	24	400	180
100	100	250	225	185	8	23	26	450	200
125	125	270	270	225	8	25	26	510	224
150	150	290	305	260	12	25	28	559	250
200	200	320	350	305	12	25	30	702	315

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	8	19	20	300	140
65	65	220	175	140	8	19	22	350	160
80	80	230	200	160	8	23	24	400	180
100	100	250	225	185	8	23	26	450	200
125	125	270	270	225	8	25	26	510	224
150	150	290	305	260	12	25	28	559	250
200	200	320	350	305	12	25	30	702	315

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	8	19	20	300	140
65	65	220	175	140	8	19	22	350	160
80	80	230	200	160	8	23	24	400	180
100	100	250	225	185	8	23	26	450	200
125	125	270	270	225	8	25	26	510	224
150	150	290	305	260	12	25	28	559	250
200	200	320	350	305	12	25	30	702	315

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	8	19	20	300	140
65	65	220	175	140	8	19	22	350	160
80	80	230	200	160	8	23	24	400	180
100	100	250	225	185	8	23	26	450	200
125	125	270	270	225	8	25	26	510	224
150	150	290	305	260	12	25	28	559	250
200	200	320	350	305	12	25	30	702	315
