JIS F 7418 Bronze16K lift check angle valves(union bonnet type)



Position: HOME > PRODUCTS > Marine > JIS Marine Valve > JIS F 7418 Bronze16K lift check angle valves(union bonnet type)

JIS F 7418 Bronze16K lift check angle valves(union bonnet type)

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7418-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	3.3
	SEAT	2.42-0.4

Specification

4	GASKET	NON-ASBESTES
6	DISC	BC6
2	BONNET	BC6
1	BODY	BC6
NO.	NAME OF PART	MATERIAL

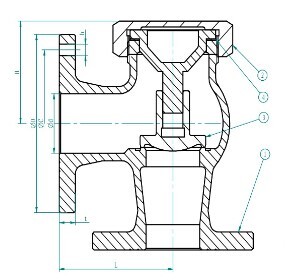

BRONZE 16K LIFT CHECK ANGLE VALVE(UNION BONNET TYPE)

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H
15	15	70	95	70	4	15	12	56
20	20	75	100	75	4	15	14	59
25	25	85	125	95	4	19	14	67
32	32	95	135	100	4	19	16	65
40	40	100	140	105	4	19	16	69

DN	d	L	D	C	NO.	h	t	H
15	15	70	95	70	4	15	12	56
20	20	75	100	75	4	15	14	59
25	25	85	125	95	4	19	14	67
32	32	95	135	100	4	19	16	65
40	40	100	140	105	4	19	16	69

DN	d	L	D	C	NO.	h	t	H
15	15	70	95	70	4	15	12	56
20	20	75	100	75	4	15	14	59
25	25	85	125	95	4	19	14	67
32	32	95	135	100	4	19	16	65
40	40	100	140	105	4	19	16	69

DN	d	L	D	C	NO.	h	t	H
15	15	70	95	70	4	15	12	56
20	20	75	100	75	4	15	14	59
25	25	85	125	95	4	19	14	67
32	32	95	135	100	4	19	16	65
40	40	100	140	105	4	19	16	69
